La Jolla Retaining Wall
Project: Retaining Wall, Grading and Compaction
Client: La Jolla Woods HOA
Location: La Jolla, CA
Design Engineer:
Soil Engineering Construction, Inc.
Geotechnical Engineer:
Soil Engineering Construction, Inc.
Contractor:
Soil Engineering Construction, Inc.
Structural Engineers:
Geotechnical Exploration, Inc.
Project Description:
Responding to an existing and expanding slope failure on the subject property, SEC designed, permitted and constructed a retention wall, compacted imported fill with Geogrid reinforcement and re-graded the failed slope to assure that threatened residence structure was not imminently undermined.

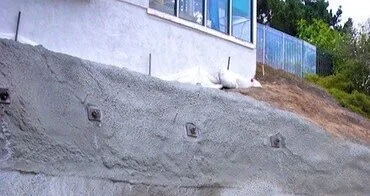

The slope failure encompassed approximately 2,000 sq. ft. and required the construction of a 60’ long, 8’-20’ high hand-sculpted shotcrete retention wall. The wall was secured for retention purposes utilizing 3 rows of multi-strand anchors, extending 51’ to 61’ into the slope. Compacted backfill was placed to reconstruct the slope after completion of the retention wall, with remaining disturbed failure materials being removed from the site. SEC re-routed upland drainage and installed sub-drains on the repaired slope.
Slope Failure Repair
Visible Retention Wall Coverage: Approx. 900 sq. ft.
21 Drilled Tiebacks / Multi-Strand Anchors
Double Corrosion Protected (DCP) Reinforcement
Hand-Sculpted / Color Treated Shotcrete Finish
Geogrid Reinforced Compacted Backfill
Re-Routing of Drainage and Placement of Sub-Drains
Landscape Planting
